RADGRIDVIEW Performance Issue ?

i have a Master-Detail CRUD Job

Details shown using RADGRIDVIEW

for example : Master is "TBSYUSER" class Detail is "TBSYUSAU" class

change master will change detail data

i using BindingList<TBSYUSAU> --> BindingSource -> RADGRIDVIEW

now if detail data's count varing a little large

ex: record count change from 1 to 89 due to master change

RADGRIDVIEW refresh will take more times

should i change strucuture to : Datatable --> BindingSource -> RADGRIDVIEW

or have some suggestion ?

TKs

GridView

answered on 22 Jan 2026

1 answer

35 views

How to programmatically expand a GridViewComboBoxColumn

I would like to expand a GridViewComboBoxColumn list on the same row where on another column that is set to "Lost".

(see attached screenshot)
(1) User clicks on a cell and selects "Lost" from a list

(2) From Cell Event, the "Reason" column (GridViewComboBoxColumn) is automatically expanded so the user knows to select a reason.

		private void dgvSales_CellValidating(object sender, CellValidatingEventArgs e)
		{
			if(e.ColumnIndex >= 0 && e.RowIndex >= 0)
			{

				switch (e.ColumnIndex)
				{
					case int _ when e.ColumnIndex == dgvSales.Columns["colWonLost"].Index:
						if(e.Value.ToString() == "Lost")
						{
							dgvSales.CurrentRow.Cells["colReason"].IsSelected = true;

							//Add code here to expand colReason list


							return;
						}
						break;
					default:
						break;
				}
			}

		}  //dgvSales CellValidating

GridView

answered on 22 Jan 2026

2 answers

71 views

[Solved] Windows 7 to become legacy theme

Hi

I notice in the release notes for WinForms 2025.4.1321 that the upcoming release (Q2 2026) will no longer support Windows 7 theme (amongst others). My desktop application make extensive use of this theme, including mimicing the colours used by th etheme in other custom controls.

What is exactly meant by "Support for existing controls using these themes will remain unchanged."? Will my existing application work as before without changes for this and following releases of WinForms?

Cheers
Toby

General Discussions

Themes and Visual Style Builder

answered on 22 Jan 2026

1 answer

29 views

How to change the font color in RadRibbonBarGroup (WinForms) with code?

I searched and searched and this answer was answered back in 2023 but not from a code perspective.

How do I change the font fore color (via code) for the group caption? CaptionFill is for the backcolor. Got it. I have spent hours trying to find it in this website and searching. Why does Telerik make things so difficult?

RibbonBar

answered on 22 Jan 2026

4 answers

91 views

Datagridview - Column chooser

Hello,

I want to choose column by checkboxes, something like that:

I

It is possible?

Thank you for your answer

CheckedListBox

GridView

answered on 22 Jan 2026

1 answer

36 views

How to disable some default Column Header Context Menu ?

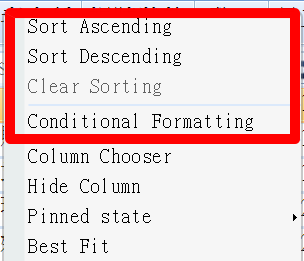

i want to disable some default Column Header Context Menu like "Sort Ascdnging" "Sort Descending" ...

How to do ?

Also i want to disable some default Cell Column Context Menu ? TKS

GridView

answered on 20 Jan 2026

1 answer

44 views

Make a row of RADGRIDVIEW as "Deleted"

i use RADGRIDVIEW to show datas

i want to let use to select some rows as "Deleted"

to delete these datas form DataBase

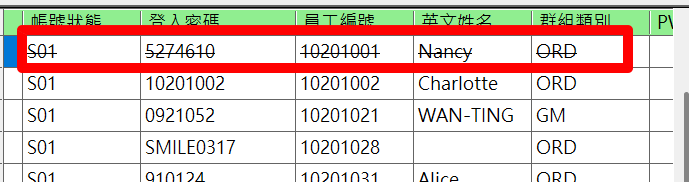

how can i let these rows shown as the following

the example is done by using C# default DataGridView

How can be done in RADGRIDIEW ?

GridView

answered on 20 Jan 2026

1 answer

59 views

GridView cell formatting in custom columns

Hello,

I would like to ask two questions about custom columns in GridView. I'm putting them into one thread since they're related.

1. What's the relationship between SetContentCore and OnCellFormatting? Is it ok to set formatting in SetContentCore? This is how it seems to me to be correct:

		protected override void SetContentCore(object value)
		{
			if (value is Quality q)
			{
				if (q == Quality.None)
					Text = "--";
				else
					Text = q.ToString();
			}
			else
				base.SetContentCore(value);
		}

		protected override void OnCellFormatting(CellFormattingEventArgs e)
		{
			ResetValue(VisualElement.BackColorProperty, ValueResetFlags.Local);
			ResetValue(VisualElement.ForeColorProperty, ValueResetFlags.Local);
			ResetValue(LightVisualElement.NumberOfColorsProperty, ValueResetFlags.Local);
			ResetValue(LightVisualElement.DrawFillProperty, ValueResetFlags.Local);

			if (Value is Quality q)
			{
				switch (q)
				{
					case Quality.OK:
						BackColor = Color.Lime;
						NumberOfColors = 1;
						DrawFill = true;
						break;
					case Quality.NOK:
						BackColor = Color.Red;
						NumberOfColors = 1;
						DrawFill = true;
						break;
					case Quality.Error:
						BackColor = Color.DodgerBlue;
						NumberOfColors = 1;
						DrawFill = true;
						break;
				}
			}

			base.OnCellFormatting(e);
		}

But this also works. I tried it mainly because of the second question, and Copilot actually suggested it as the first styling approach.

		protected override void SetContentCore(object value)
		{
			if (value is Quality q)
			{
				if (q == Quality.None)
					Text = "--";
				else
					Text = q.ToString();

				ResetValue(VisualElement.BackColorProperty, ValueResetFlags.Local);
				ResetValue(VisualElement.ForeColorProperty, ValueResetFlags.Local);
				ResetValue(LightVisualElement.NumberOfColorsProperty, ValueResetFlags.Local);
				ResetValue(LightVisualElement.DrawFillProperty, ValueResetFlags.Local);

				switch (q)
				{
					case Quality.OK:
						BackColor = Color.Lime;
						NumberOfColors = 1;
						DrawFill = true;
						break;
					case Quality.NOK:
						BackColor = Color.Red;
						NumberOfColors = 1;
						DrawFill = true;
						break;
					case Quality.Error:
						BackColor = Color.DodgerBlue;
						NumberOfColors = 1;
						DrawFill = true;
						break;
				}
			}
			else
				base.SetContentCore(value);
		}

2. Is there any way to override how Value is retrieved from the DataBoundItem? In one of my column types, I can't use FieldName directly. In classic DataGridView, I could override GetValue / SetValue like this:

		protected override object GetValue(int rowIndex)
		{
			DgvRealResultColumn col = OwningColumn as DgvRealResultColumn;
			object obj = DataGridView.Rows[rowIndex].DataBoundItem;
			if ((col == null) || (obj == null))
				return base.GetValue(rowIndex);

			object resultValue = GetResultValue(rowIndex, col, obj);
			Quality q = (Quality)Convert.ToInt32(resultValue);
			if (!QualityHelper.HasValue(q))
				return null;

			if (obj is RealResult rr)
				return rr.Value;

			string propName = string.Format("R{0:D3}Value", col.ItemIndex);
			PropertyInfo pi = obj.GetType().GetProperty(propName);
			return pi.GetValue(obj, null);
		}

I don't see anything like that in Telerik GridView. So far, I came up with this workaround:

		protected override void SetContentCore(object value)
		{
			TestResult r = null;
			var obj = RowInfo.DataBoundItem;
			if (obj is TestResult)
				r = (TestResult)obj;
			else if (obj is TestItem item)
			{
				var col = ColumnInfo as RgvTestResultColumn;
				if ((col != null) && (item.Results != null) && (col.ResultIndex < item.Results.Length))
					r = item.Results[col.ResultIndex];
			}

			ResetValue(VisualElement.BackColorProperty, ValueResetFlags.Local);
			ResetValue(VisualElement.ForeColorProperty, ValueResetFlags.Local);
			ResetValue(LightVisualElement.NumberOfColorsProperty, ValueResetFlags.Local);
			ResetValue(LightVisualElement.DrawFillProperty, ValueResetFlags.Local);

			if (r == null)
			{
				base.SetContentCore(value);
				return;
			}

			switch (r.Result)
			{
				case Quality.OK:
					Text = r.Value.ToString("F1");
					BackColor = Color.Lime;
					NumberOfColors = 1;
					DrawFill = true;
					break;
				case Quality.NOK:
					Text = r.Value.ToString("F1");
					BackColor = Color.Red;
					NumberOfColors = 1;
					DrawFill = true;
					break;
				case Quality.Error:
					Text = "X";
					BackColor = Color.DodgerBlue;
					NumberOfColors = 1;
					DrawFill = true;
					break;
				default:
					Text = "--";
					break;
			}
		}

But in this case, it doesn't set the internal Value, so when I write rgv.Rows[0].Cells["colR0"].Value in code, I always get null. Is there any way to solve this? I am attaching my test code for testing.

GridView
